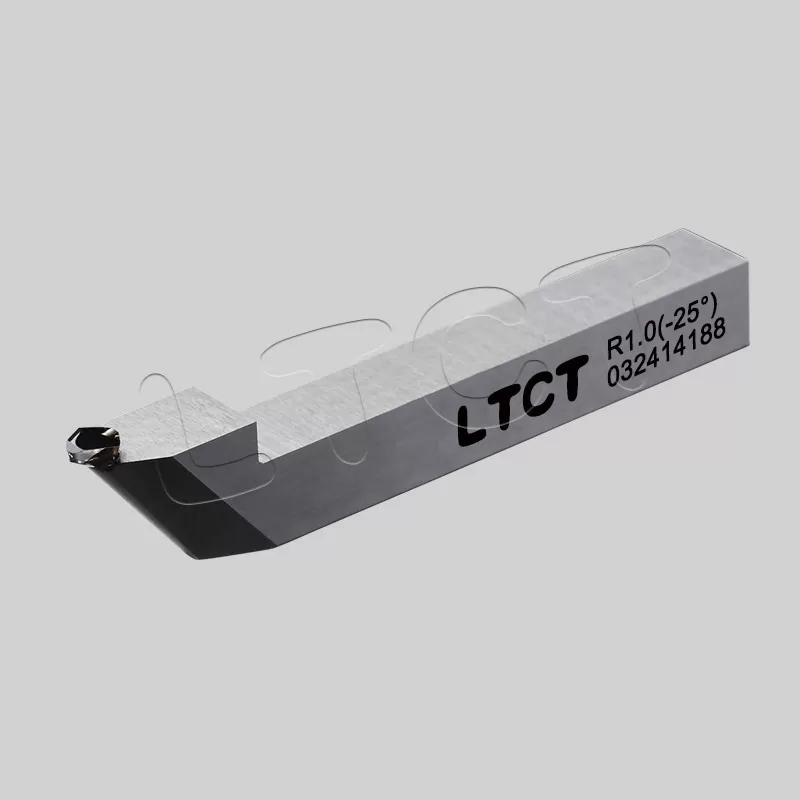

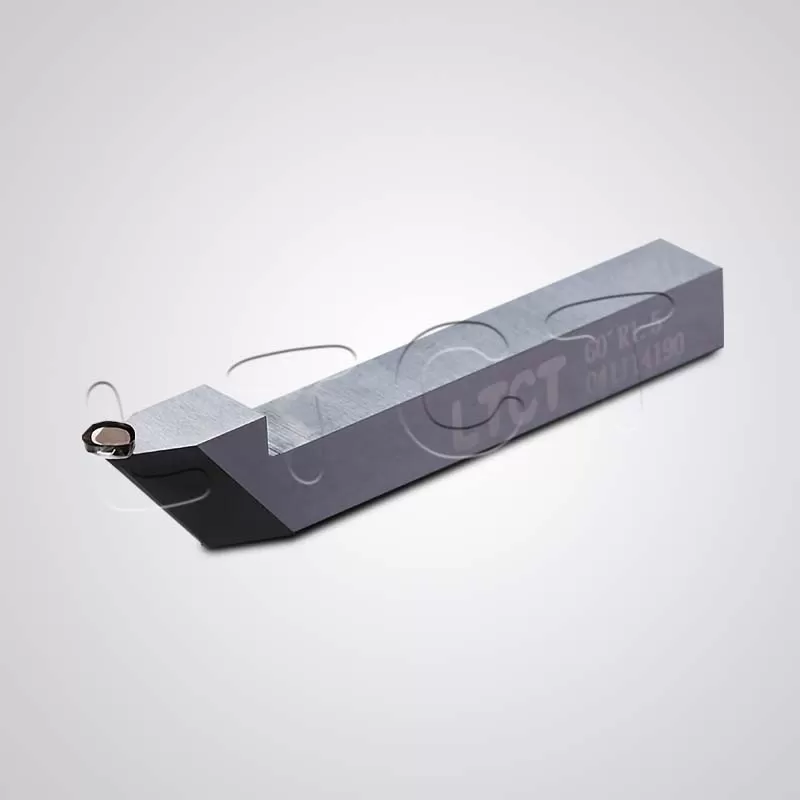

Diamond Turning Tools for Infrared Industry are precision single-crystal diamond cutting tools engineered specifically for machining infrared optical materials. These tools enable ultra-precision machining of components used in thermal imaging, night vision, and infrared optical systems, delivering mirror-quality surfaces with minimal sub-surface damage.
Diamond Turning Tools for Infrared Industry are precision single-crystal diamond cutting tools engineered specifically for machining infrared optical materials. These tools enable ultra-precision machining of components used in thermal imaging, night vision, and infrared optical systems, delivering mirror-quality surfaces with minimal sub-surface damage.
Manufactured from high-purity natural or synthetic diamond, these tools feature specialized geometries optimized for brittle infrared materials, ensuring superior surface finish and extended tool life compared to conventional cutting tools.
Diamond Turning Tools for Infrared Industry are engineered specifically for machining infrared materials such as germanium (Ge), silicon (Si), zinc selenide (ZnSe), and chalcogenide glass.
Applications:
Infrared Optics Manufacturing
Our diamond turning tools are widely used in the production of infrared optical components, including:
· Lens Types: Aspheric, spherical, diffractive, Fresnel, and hybrid lenses
· Components: Infrared windows, sensors, and optical elements for SWIR, MWIR, and LWIR systems

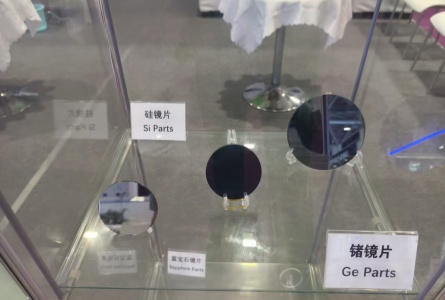

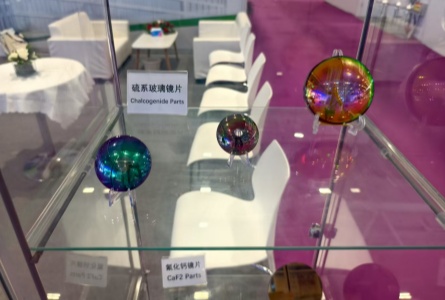

· Materials Processed: Germanium (Ge), Silicon (Si), Zinc Selenide (ZnSe), Zinc Sulfide (ZnS, multispectral), Chalcogenide Glass, Calcium Fluoride (CaF₂), Gallium Arsenide (GaAs)
Optical Assemblies
· Mirrors: Off-axis parabolic, elliptical, and freeform mirrors
· Housings: Precision cooling housings and structural parts for IR assemblies
Machine Compatibility
Our diamond turning tools are designed for use with ultra-precision single-point diamond lathes, including:
· Moore Nanotech systems (250 UPL, 350 UPL, 650 FG)
· Precitech Nanoform series
· LT Ultra precision machines
· ……
Diamond Turning Tools For Infrared Industry | ||
Diamond Types | Natural Diamond | Yes |
Synthetic Diamond | Yes | |
Minimum Radius | 0.05mm | |
Maximum Radius | 2mm | |
Arc | 15°-140° | |
Included Angle | 20°-160° | |
Rake Angle | 0° to -45° | |
Front Clearance Angle | 0° to 20° | |
Cutting Edge Waviness | 2.0μm to 0.03um | |
Holder | Solid Shank | Yes |
Insert | Yes | |
Shank Material | Tungsten | Yes |
Steel | Yes | |
Molybdenum | Yes | |
Shank Types | Square or Rectangular | Yes |
Round | Yes | |
Other sizes available on request | Yes | |
LTCT Diamond Tools offers complete customization to meet any unique machining requirement. Whatever your application demands, please consult with us—we have the capability to manufacture the exact tool you need.
First-class Natural Diamond (ND) and Advanced Synthetic Diamond, both available, Litian Century has the State-of-the-art equipment for both producing and measuring our diamond tools.
Our technicians have been working with diamond for more than 20 years now. We are constantly innovating and driving the company years ahead of the competition. is the essential for perfect performance and durability of our Single crystal diamond turning tools. You can choose the suitable material according to your requirements. Take advantage of our innovations that will assure you are using the most efficient and reliable tools that eliminate errors and reduce production costs.
✓ Material-Optimized Geometries: Each tool is configured specifically for your target infrared material
✓ Superior Edge Quality: Precision-measured edge radius with nanometer accuracy
✓ Extended Tool Life: Exceptional wear resistance reduces tool changes and downtime
✓ Post-Polishing Elimination: Achieve optical-grade surfaces directly from machining
✓ Technical Support: Expert guidance on tool selection and machining parameters
Tool Clamping
· Handle the tool lightly when clamping
· Do not contact the diamond tip directly
· After removing the Diamond Turning Tool, place it back in the tool box immediately
· Do not leave tools exposed to avoid damaging the diamond
Tool Cleaning
· Wipe the diamond tips gently with a clean foam stick dipped in industrial alcohol
· Avoid excessive force or abrasive materials that could damage the cutting edge
① After-sales Services
We have professional after-sales service team and after-sales system which called "Litian Century After-sales System". This system is used to manage the information of after-sales maintenance products, and can realize the functions of inquiring the grinding progress, grinding cost and feedback of after-sales problems. Advantages of the system: "zero consultation, more time saving, more convenient, more efficient", users can log in at any time to check.
② Quality Assurance
The company is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process. At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.
③ Repair Service
For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. A after-sales service system is available which can let you know the condition of your repaired tools in real time.
④ Packages
We customize special packaging box for the tool, in line with the mechanical structure of the human body, that is, convenient disassembly and safe.
⑤ Delivery
We can arrange delivery your goods by air, DHL, FedEx and other ways your need.
Our products enjoy a great reputation for its good surface finish, high precision and complete product variety. We serve the customers from USA, Mexico, Germany, Belgium, Russia, South Africa, Egypt, India, Pakistan, Korea, Japan and all Southeast Asian countries.
